How to Hardwire a Dual Dash Cam for 24/7 Parking Protection Without Draining Your Battery
Share
## Drive with Complete Peace of Mind
Dangling 12V cigarette lighter cables taking up your center console are a thing of the past. Beyond aesthetics, running a dash cam off an auxiliary outlet means your cameras shut down the moment you turn off the ignition—leaving your vehicle completely vulnerable to hit-and-run incidents, vandalism, or parking lot scrapes.
Hardwiring a dual dash cam directly to your vehicle's fuse box unlocks 24/7 parking mode while keeping your cabin completely wire-free.
At **DriveTech Co.**, we specialize in high-performance automotive gadgets. Here is your definitive, step-by-step guide to hardwiring your dash cam safely without ever waking up to a drained battery.
---
## Tools & Supplies Needed
Before opening your fuse panel, ensure you have the following gear ready:
* **Dual Dash Cam Kit** (Front & Rear cameras)
* **Hardwire Cable Kit with Voltage Cut-Off Switch** (Crucial for battery protection)
* **Add-A-Fuse / Fuse Taps** (Matching your car's fuse type: Mini, Micro2, ATO, or Low-Profile Mini)
* **12V Circuit Tester / Multimeter**
* **Plastic Trim Removal Tool**
* **Crimping Tool & Wire Strippers**
---
## Step 1: Locate Your Cabin Fuse Box and Identify Circuits
### Finding the Right Fuses
Most modern cars feature an interior fuse box located under the driver-side dashboard, behind the glove compartment, or near the footwell.
You need to identify two distinct, non-critical 12V fuse slots using your circuit tester:
1. **Switched Power (ACC / Accessory):** This slot only receives power when the ignition key is turned to "ACC" or "ON" (e.g., cigarette lighter, radio, or power windows).
2. **Constant Power (B+ / BAT):** This slot supplies power 24/7, even when the key is removed and the car is locked (e.g., hazard lights, door locks, or interior dome lights).
3. **Grounding Point:** A bare metal bolt attached directly to the car's steel chassis frame.
> **Safety Warning:** Avoid tapping into critical safety-related fuses such as airbags (SRS), ABS brakes, or engine control units (ECU).
---
## Step 2: Configure the Smart Voltage Cut-Off Kit
### Preventing Battery Drain
The key to safe 24/7 parking monitoring is the inline low-voltage protection module included on quality hardwire kits.
Car batteries typically sit at 12.6V when fully charged and need around 11.8V–12.0V to turn over the starter motor.
* **Set Your Cut-Off Threshold:** Set the toggle switch on your hardwire box to **12.0V or 12.2V** (or 24.0V for 24V trucks).
* When your parked car's battery voltage drops to this preset limit, the hardwire kit automatically cuts power to the dash cam, preserving enough juice to start your engine every time.
---
## Step 3: Crimp Fuse Taps and Install to the Panel
### Clean Circuit Integration
Never wrap bare copper wire around a fuse blade—this creates a fire hazard and risks short-circuiting your car's electrical board.
1. **Crimp the Wires:** Crimp the hardwire kit's **Red (ACC)** wire to your switched fuse tap, and the **Yellow (BAT)** wire to your constant fuse tap.
2. **Insert Both Fuses:** Place your car's original fuse into the bottom slot of the fuse tap, and insert the included dash cam fuse (usually 3A–5A) into the top slot.
3. **Plug into the Board:** Insert the fuse taps directly into their corresponding slots in the fuse box.
4. **Attach Ground:** Unbolt your chosen chassis ground bolt, slide the **Black Ground Crimp Ring** underneath, and tighten the bolt firmly down against the bare metal.
---
## Step 4: Hide and Route the Cabling Cleanly
### Professional Stealth Installation
Use a plastic trim tool to tuck your cables invisibly behind the vehicle’s interior panels.

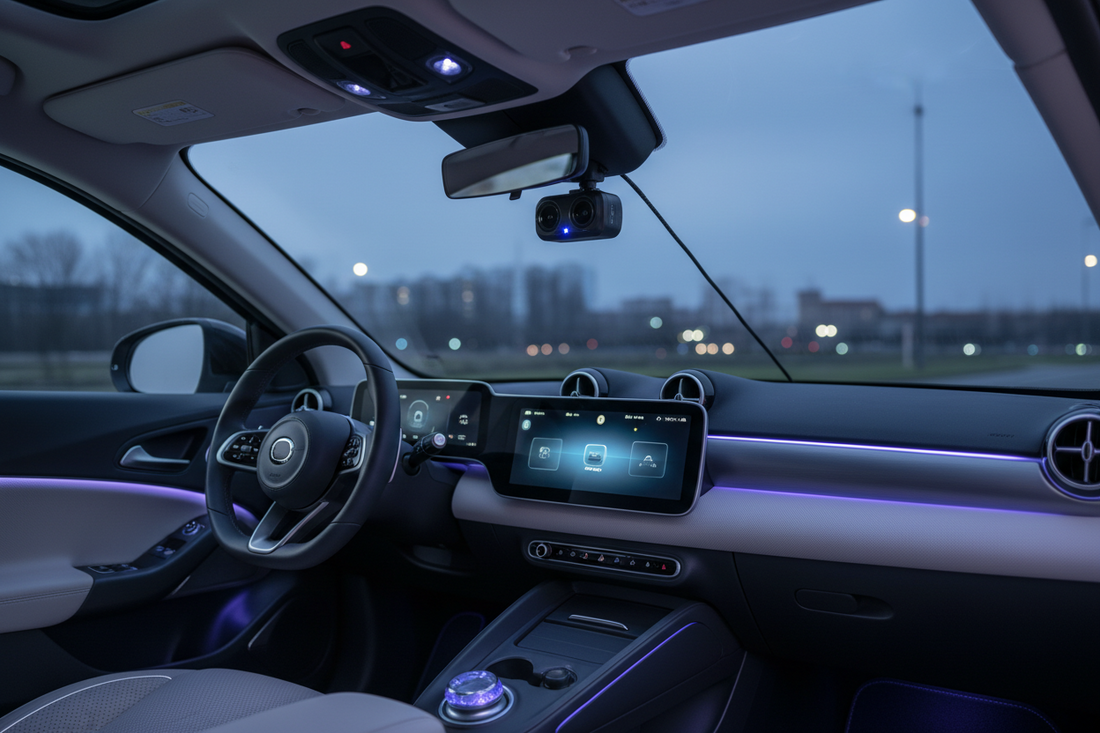

1. **Front Camera:** Mount your main camera behind or beside the rearview mirror outside your direct line of sight.
2. **Route the Power Cable:** Run the main power wire up into the headliner, across the top windshield edge, down the A-pillar, and into the dashboard fuse box.
* *Pro Tip:* Route behind the A-pillar airbag, not in front of it, so deployment is never obstructed.
3. **Route the Rear Camera Cable:** Run the secondary coaxial cable along the ceiling headliner edge all the way to the rear windshield, plugging it firmly into the rear camera module.
---
## Step 5: Test Ignition and Parking Mode Transition
### Verifying the Setup
Before clicking all your plastic dash panels back into place, run a dual-mode test:
1. **Ignition Test:** Turn your vehicle's engine on. The dash cam should boot up immediately and begin continuous driving recording.
2. **Parking Mode Test:** Turn off the engine and remove the key. The dash cam should recognize the voltage drop on the ACC wire and switch automatically into "Parking Surveillance Mode" (time-lapse, motion detection, or G-sensor standby).
---
## Upgrade Your Daily Drive
Hardwiring a dual dash cam is one of the most rewarding DIY upgrades you can make for your vehicle. You eliminate messy cabin clutter while keeping an active, automated eye on your car 24 hours a day, 7 days a week.
