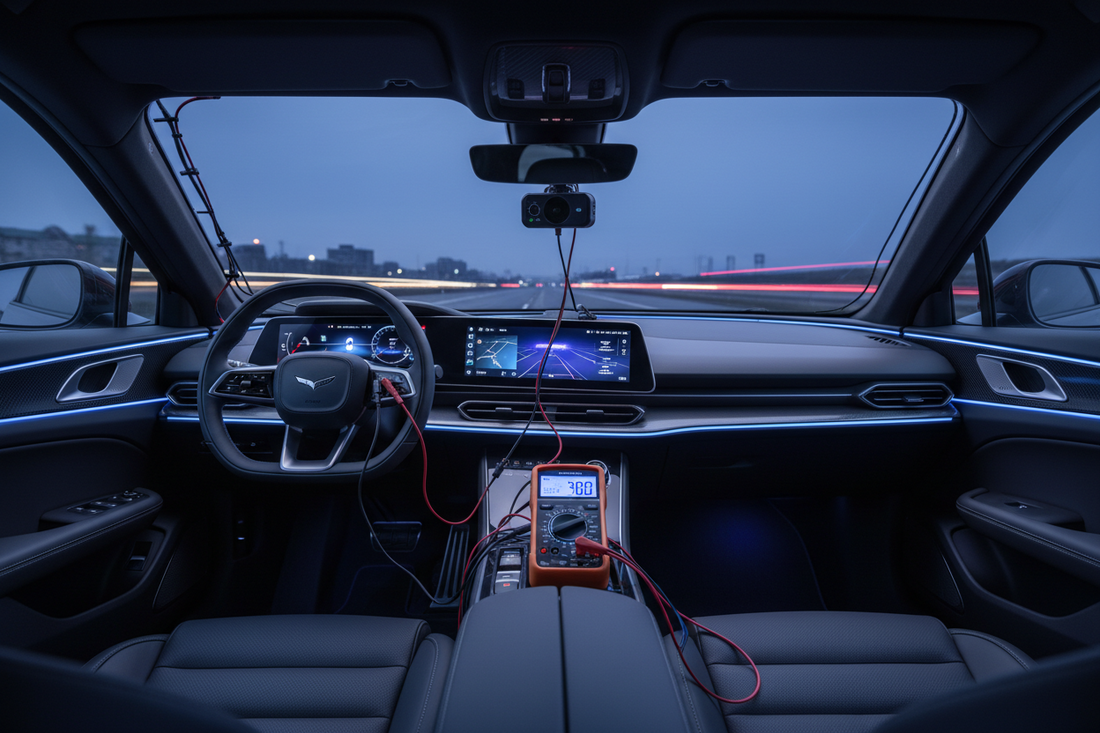

The Step-by-Step Guide to Hardwiring a Dual Dash Cam Without Draining Your Battery
Share
## Step 1: Gather Your Tools and Identify Your Vehicle’s Fuse Box
Hardwiring a front and rear dual dash cam provides 24/7 parking surveillance without messy cables dangling from your cigarette lighter. To complete a clean installation, you need the right setup before opening your dashboard.
* **Hardwire Kit with Low-Voltage Cutoff:** Never connect a dash cam directly to fuse taps without an inline smart voltage regulator.
* **Circuit Tester / Multimeter:** Vital for locating constantly hot and ignition-switched power slots.
* **Fuse Puller & Add-A-Circuit Taps:** Matches your vehicle’s specific fuse type (ATO, Mini, Low-Profile Mini, or Micro2).
* **Plastic Trim Removal Tools:** For tucking cables safely behind air bags and headliners.
Locate your interior fuse box, which is typically found under the driver’s side dashboard, behind the glove box, or inside the side kick panel.
---
## Step 2: Mount the Front and Rear Cameras Safely
Positioning is crucial for optimal field-of-view and driving safety.
1. **Front Camera:** Mount behind or adjacent to the rearview mirror. Ensure the lens sits within the sweep of your windshield wipers while keeping your view completely unobstructed.
2. **Rear Camera:** Center the rear lens at the top of the rear windshield. Avoid mounting directly over heating defrost wires.
3. **Cable Routing:** Route the rear camera cable along the headliner trim. Use your plastic trim tool to tuck the wire *behind* side curtain airbags—never lay power cables across airbag deployment paths!
---
## Step 3: Test and Identify Your Fuse Slots
Your hardwire kit utilizes three core wires: **BAT/ACC+ (Constant Power)**, **ACC (Switched Power)**, and **GND (Ground)**. Using your multimeter, test slots in the fuse box with the key turned off.
| Wire Label | Function | How to Identify the Fuse Slot | Common Suitable Fuses |
| :--- | :--- | :--- | :--- |
| **Yellow (BAT+)** | Powers parking mode surveillance | Holds 12V continuously, even with the engine turned completely OFF. | Hazard lights, door locks, interior dome lights. |
| **Red (ACC)** | Powers normal driving recording | Holds 0V when off; turns to 12V only when ignition key is in "ACC/ON". | Cigarette lighter socket, radio, sunroof. |
| **Black (GND)** | Completes the electrical circuit | Crimp directly to an unpainted factory metal bolt on the chassis frame. | Steering column bolts, chassis ground screws. |
---
## Step 4: Connect the Fuse Taps and Set Low-Voltage Protection
Insert your original vehicle fuse into the bottom slot of your Add-A-Circuit tap, and place the hardwire kit's fuse into the top slot. Plug the tap into the tested fuse box socket.
### Configuring the Voltage Cutoff Module:
Batteries slowly discharge during 24-hour parking recording. Set the low-voltage cutoff switch on your hardwire kit box to **12.0V or 12.4V** (or 24.0V/24.8V for trucks).
> **Pro Tip:** Set the threshold to **12.4V** during winter months. Cold temperatures reduce battery capacity, and a higher cutoff voltage guarantees your vehicle cranks smoothly every morning.
---
## Step 5: Route Cables and Run a Full Functional Test
Tuck all excess power wiring behind your A-pillar trim panels using zip ties to secure cables away from moving parts.
1. Turn your ignition key to "ON"—the dash cam should instantly power up and start driving recording.
2. Turn the engine OFF and remove the key—the camera should smoothly transition into "Parking Mode" without shutting down abruptly.
3. Let the car sit for several minutes to verify the low-voltage sensor functions as expected without tripping short circuits.
